Conveyor and guiding rollers with ball bearings

Special rollers are manufactured with diameters ranging from 30 to 85 mm and load capacities from 10 to 490 kg. The bearings are sealed on both sides and are moulded into PE·VO·LON® or PEVOTHAN®.
Special VULKOLLAN® rollers with roller body made of steel, direct bonded tread and with force-fitted or caulked deep groove ball bearings are produced with diameters ranging from 40 to 150 mm and load capacities from 55 to 1030 kg.
Ball units with housings made of bright zinced steel and stainless steel with load capacities from 10 to 610 kg are available for different fields of application.



PEVOLON® conveyor roller

PEVOLON® conveyor rollers with ball bearing

Roller body made of high-quality thermoplastic polyamide moulded around the ball bearing (/5).

PEVOLON® single flanged rollers

PEVOLON® single flanged rollers with ball bearing

Roller body made of high-quality thermoplastic polyamide moulded around the ball bearing (/5).

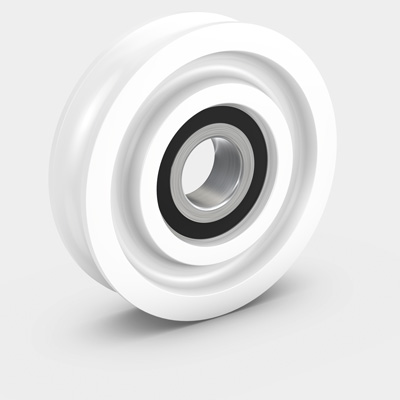

PEVOLON® grooved wheels

PEVOLON® grooved wheels with ball bearing

Roller body made of high-quality thermoplastic polyamide moulded around the ball bearing (/5).

PEVOTHAN® conveyor rollers

PEVOTHAN® conveyor rollers with ball bearing

Roller body made of high-quality thermoplastic polyurethane (96° Shore A) moulded around the ball bearing (/5).

PEVOTHAN® Heavy-duty conveyor rollers

PEVOTHAN® Heavy-duty conveyor rollers with ball bearing

Roller body made of high-quality thermoplastic polyurethane (98° Shore A / 78° Shore D) moulded around the ball bearing (/5).

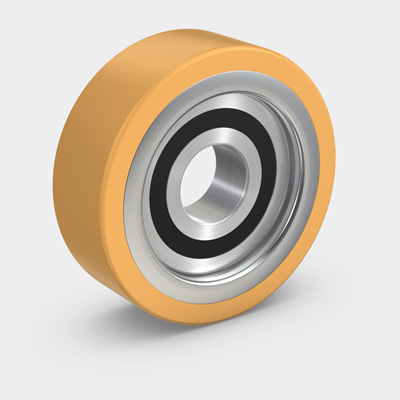

VULKOLLAN® guiding rollers

Roller body made of steel with force-fitted roller bearing (/5) and direct bonded VULKOLLAN® tread (93° Shore A).
